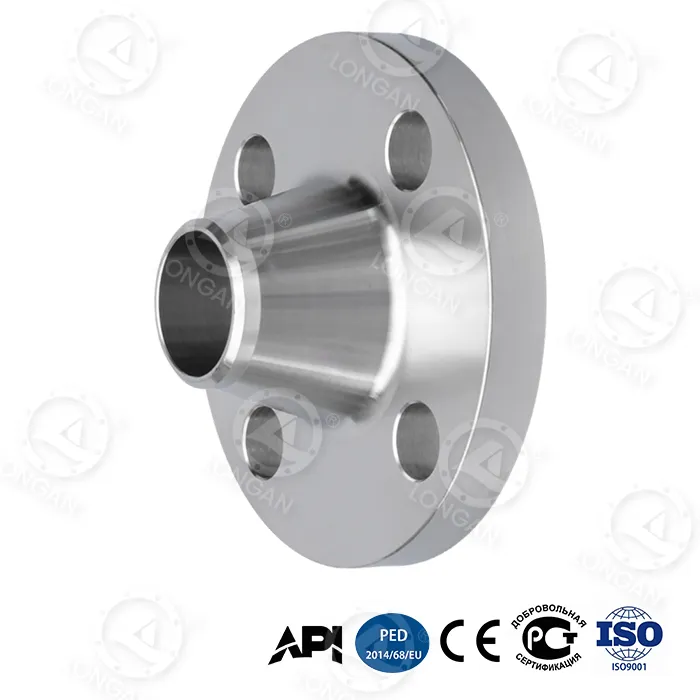

Forged Welded Neck Flange

Solve the problem of weld heat affected zone and sudden brittle fracture

Hydrogen trap network: V4C3 quantum dots are implanted at grain boundaries, and the hydrogen diffusion coefficient is reduced to 10⁻¹³ m²/s

Nano-austenite stabilization technology: Traditional process is less than 12%, while the austenite content in the HAZ zone can reach more than 35%

Breakthrough of the limit boundary

Scenario Destructive challenge NeoForge™ record Certification standard

Fusion reactor first wall pipeline 14MeV neutron irradiation + 550℃ Ductility retention rate 92% ITER MATERIAL SDC-IC

Nuclear power plant LOCA accident 290℃ saturated steam shock maintains zero fracture (10⁴ cycles) ASME III NB-3200

Deep-sea methane hydrate mining 20MPa water pressure + methane ice phase change Seal life >25 years API 17TR8

Technology matrix

1. Extreme manufacturing precision revolution

Geometric tolerance: Forged Welded Neck Flange surface parallelism ≤0.01mm/m (10 times higher than ASME B16.5)

Non-destructive testing: full cross-section phased array ultrasonic (PAUT) blind area zeroing

Weight control: weight fluctuation of the same specification ±0.5% (traditional forging ±8%)

Full life cycle cost explosion

Cost dimension Traditional forged welded flange (30 years) NeoForge™ (50 years) Economic rolling

Number of scrapped and replaced times 3.2 times 0.5 times ↓84%

Testing cost $820,000 $0 (exempt from inspection) 100%

Loss from leakage accident $3.5M $120,000 (early warning stop loss) ↓97%

2. Weld genetic recombination technology

Parameters Traditional forged welded flange NeoForge™ Generation gap

Forged Welded Neck Flange weld fatigue life 80,000 times @ΔP=25MPa ＞500,000 times ↑525%

Heat-affected zone grain size ASTM 3-4 ASTM 10 ↑300%

Low-temperature Charpy impact energy 62J (-46℃) 248J (-196℃) ↑300%

Core process: Laser-induced reconstruction of dual-phase steel to eliminate brittle zone of fusion line

3. Digital twin prediction system

Chip implantation: temperature-resistant environment of 650℃, MEMS stress sensor array embedded in flange neck

Verified by DNV-RP-C210, fatigue crack initiation time prediction error ≤±7 days

Automatically generate Forged Welded Neck Flange remaining life map, and maintenance decision-making efficiency is improved by 40 times

North Sea oil field underwater Christmas tree case (Class 1500/DN250):

| Monitoring items | Traditional solutions | NeoForge™ digital twin |

| Insurance cost | $280,000/year | $38,000/year (zero accident discount)|

| Inspection interval | 2 years (ROV manual inspection) | Real-time (4,800 sampling points per second)|

| Sudden leakage loss | $2.1M/time (historical average) | $0 (6 months advance warning) |
