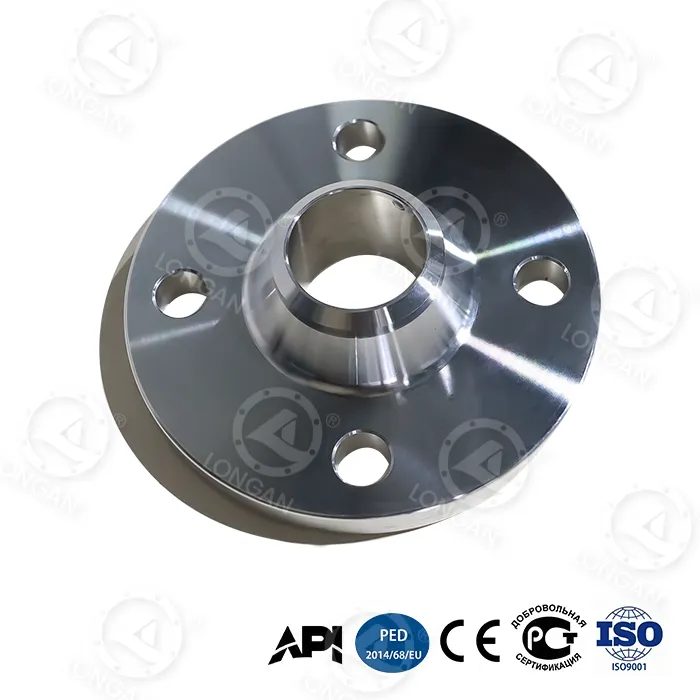

In chemical processing, offshore platforms, desalination, pharmaceutical and other environments, we provide a full range of 316 WN flanges that meet ASME B16.5 standards. After strict quality control, we ensure long-lasting performance and safety in these most demanding environments. 316 stainless steel butt welding flange necks are the industry standard choice. Detailed performance data, technical specifications, and applicable guidelines can be provided.
1. Strong corrosion resistance:
Molybdenum is the key: 316 Neck Butt Welding Flange PREN value > 25, much higher than 304 stainless steel, effectively resists pitting and crevice corrosion. It also contains 2-3% molybdenum (Mo), which significantly improves its resistance to seawater, chlorides, and various acidic solutions.
In the ASTM G48 Method A standard salt spray test (5% NaCl, 35°C), carbon steel flanges under the same conditions rusted severely within 100 hours, while 316 flange specimens showed no visible pitting after 1000 hours.
2. Easy to install and test:
316 stainless steel butt welding flanges provide permanent, high-strength joints, and are easy to test for radiographic testing (RT) and ultrasonic testing (UT).
Certifications: PED 2014/68/EU (CE Marking), NACE MR0175/ISO 15156 (for sour environments), NORSOK M-630 (Oil & Gas)
Sizes: ASME B16.5, ASME B16.47 Series A/B
Material: ASTM A182 F316/F316L
Pressure-Temperature Ratings: ASME B16.5
3. Superior Durability:
High-Temperature Performance: Maintains good mechanical properties over a wide temperature range of -425°F to 1500°F (-254°C to 816°C).
High-Pressure Capability: Designed to withstand Class 150, 300, 600, 900, 1500, 2500 pressure ratings per ASME B16.5. Clear pressure-temperature ratings table provided.
4. Optimized fluid flow:
316 Neck Butt Welding Flange gradually matches the pipe wall thickness, significantly reducing the stress concentration factor, especially suitable for cyclic load and thermal cycle applications, tapered neck design provides smooth transition, reduces turbulence and pressure drop, and fatigue life is 30-50% higher than that of sliding flange.
Mechanical Properties:
Yield Strength (0.2% deflection, minimum) 30 ksi (205 MPa) 25 ksi (170 MPa) ASTM A370
Tensile Strength (minimum) 75 ksi (515 MPa) 70 ksi (485 MPa) ASTM A370
Elongation (2-inch gauge, minimum) 30% 30% ASTM A370
Hardness (maximum) 217 HB / 95 HRB 217 HB / 95 HRB ASTM E18/E10
Available Range
Pressure Class: 150, 300, 400, 600, 900, 1500, 2500
Manufacturing Process: Forged - Stronger and less prone to defects than cast flanges.
316 Neck Butt Welding Flange size (NPS): 1/2" (15mm) to 24" (600mm)
Sealing surface: RF (Raised Face - common height 1/16" for NPS<24", 1/4" for NPS>=24"), RTJ (Ring Type Joint - R, RX, BX and other groove types)
Surface treatment: Solution annealed + pickled passivated - standard configuration to ensure the best corrosion resistance and remove free iron. Sandblasting or electrolytic polishing are optional.
