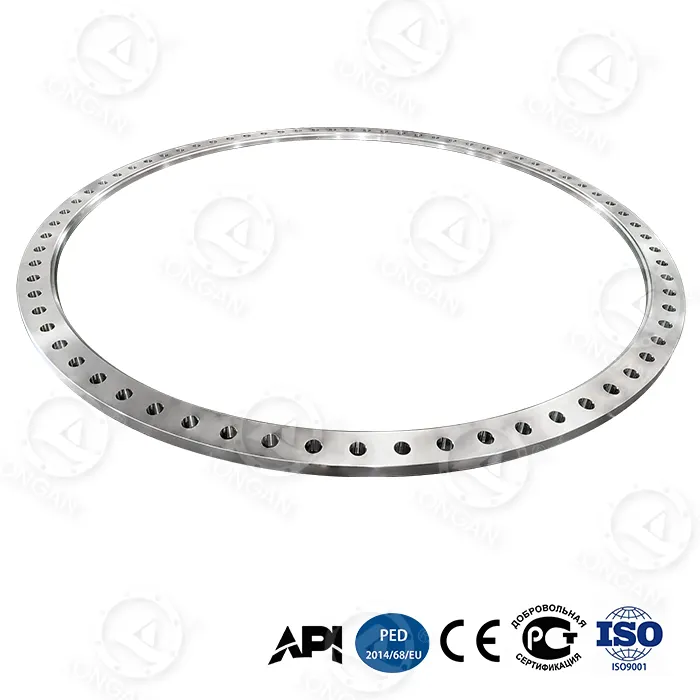

Large Steel Flange

Core product highlights

1. Rapid customization response 72 hours to deliver non-standard design drawings, improve order production efficiency, and complete mass production of Φ5m flanges within half a month.

2. High-temperature molding deformation rate ≤0.8%, which is half the industry average.

The ovality of the large steel flange is ≤1.5mm/m, which reduces the subsequent workload by 50%.

3. No single high-priced material is necessary. Materials can be selected according to working conditions, saving 30% of material costs compared to conventional brackets

4. Full industrial chain steel adaptability, compatible with 6 types of basic steel:

Q235B / SS400 / A36 (low cost) → S355JR / A572 Gr50 (medium strength) → A516 Gr70 (high pressure)

5. Super strong standby resistance, continuous deformation of 20 years ≤ 0.15mm, eight times longer than conventional flange life.

Product use scenarios

Scenario 1: Replacement of old petrochemical pipeline flanges

Using surveying and mapping technology, a 3D model can be generated for a damaged flange within 36 hours, with accurate matching and a matching degree of 98%.

The shutdown and transformation time is shortened to 72 hours. We use pressure tapping installation, which saves a lot of time and saves costs in disguise.

Scenario 2: New energy, photovoltaic support matrix connection

Our large steel flange has a minimum weight of 18kg@Φ600mm, which is 40% lighter than competing products under the same usage environment

And it can withstand a 60m/s hurricane

Our product is like a beautiful and intelligent woman, waiting for your private chat
