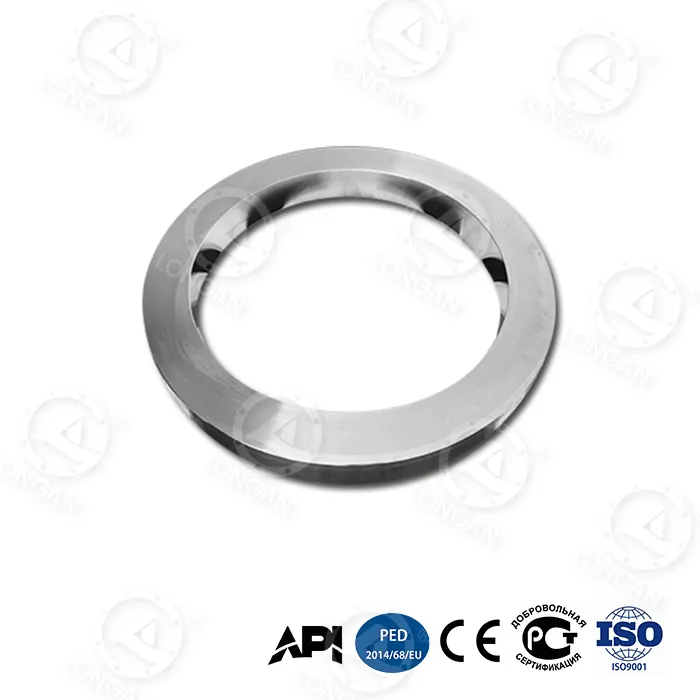

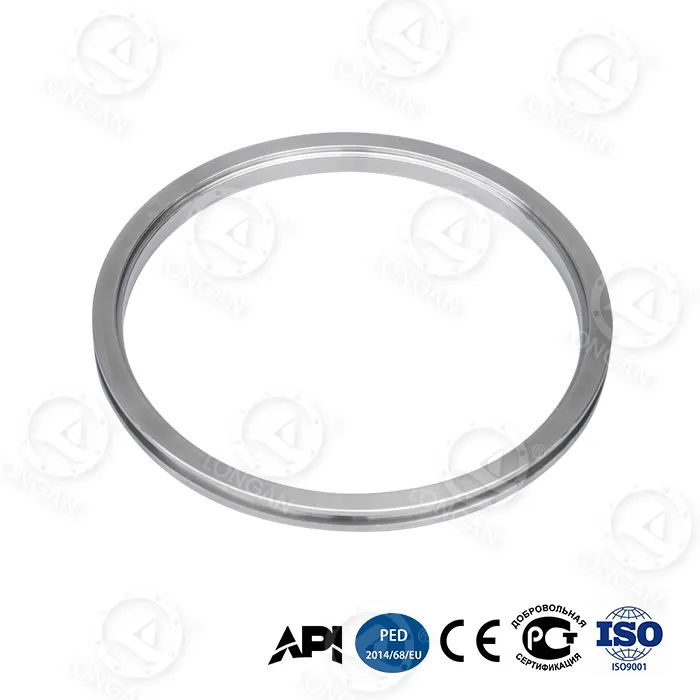

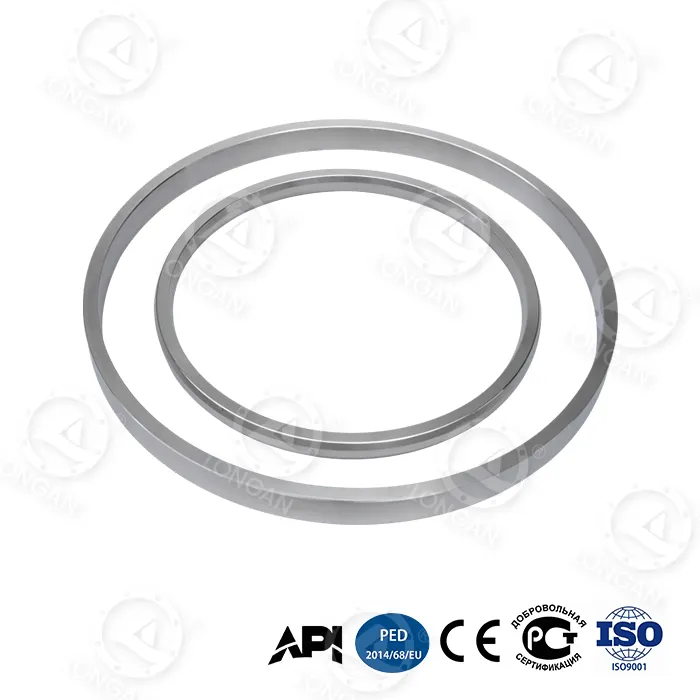

Ring Forging Flanges

High-strength, zero-defect ring forged flanges provide reliable sealing and durable connection for harsh working conditions. Ring forged flanges are high-performance ring connectors made of high-strength stainless steel through precision forging processes. They are used in high-pressure and highly corrosive environments such as petrochemical plants, offshore engineering and power generation systems.

Longan's ring forged flanges have the following advantages:

1. Leading mechanical properties in the industry: providing tensile strength (≥ 500 MPa for A105) and yield strength (≥ 260 MPa for A105) that are 40-60% higher than cast flanges, and the pressure bearing capacity and anti-deformation capacity are unique in the industry.

2. Dimensional accuracy and consistency: Using CNC machining and precision molds, the dimensional tolerance is controlled within ±0.2mm, which can ensure convenient installation and sealing reliability and reduce the risk of leakage.

3. Longer service life: Longan uses high-quality austenitic stainless steel (such as 304/316L), and the average service life is more than 50% longer than that of cast flanges, significantly reducing replacement frequency and maintenance costs.

Why are we so sure that Longan ring forged flanges have more advantages than other products? Let us introduce it to you from the manufacturing process and quality control.

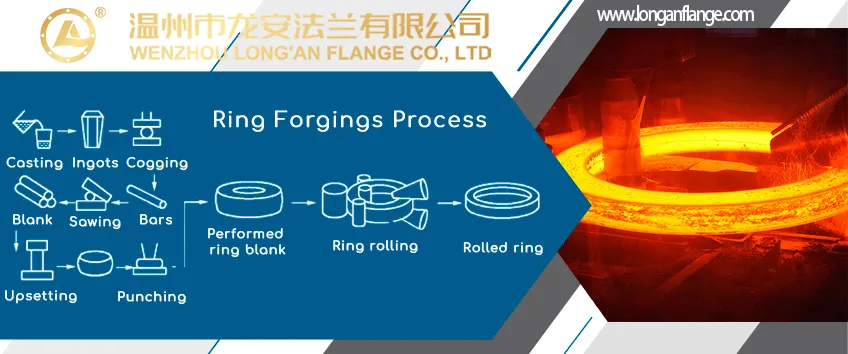

First, our raw materials require vacuum degassed steel billets to ensure that the sulfur and phosphorus content is ≤0.015%, and the hydrogen content is ≤2ppm (reducing the risk of white spots). ASTM A105 (carbon steel), A182 F316L (stainless steel), A694 F65 (high-strength pipeline steel) are mostly used.

In the second step, our sawing or flame cutting tolerance is less than ±2mm, which can make the heating uniform.

Then Longan's ring forged flanges use a natural gas rotary furnace or induction furnace to heat up to about 1150°C (carbon steel) or about 1200°C (stainless steel) in stages, and the insulation time is ≥1.5 hours/100mm section.

Our billet making target: height-to-diameter ratio 1.5-2.5:1

Finally, the ring is rolled using a CNC radial-axial ring rolling machine, and the maximum pressure during die casting can reach 4,000 tons

Middle Eastern customers purchased Longan ring forging flanges, which are used in the deep sea and have been running stably for 5 years at -45°C low temperature + 150MPa water pressure, with no failure record, and a service life that is 3 times longer than that of cast flanges. They have repeatedly given us feedback on the reliable product quality.

In summary, using our Longan ring forging flanges is a guarantee of quality and service. I hope you will contact us more!
