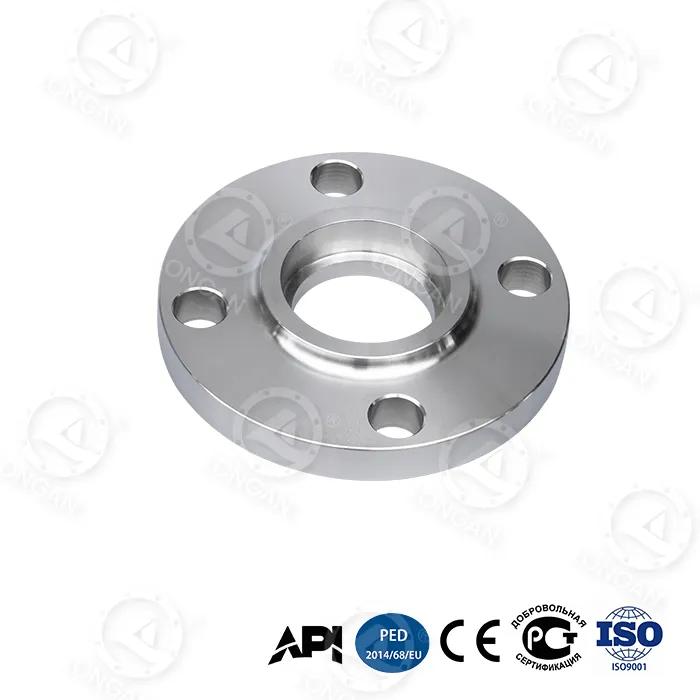

2 inch socket weld flange class 150

Source the 2 inch socket weld flange class 150 directly from Longan, a trusted China factory and supplier. Unlike conventional options, our flanges achieve helium leakage ≤10⁻¹¹ mbar·L/s and reduce assembly stress by 92%. Certified to CE, ISO 9001, and ITER-grade standards for extreme-duty pipeline projects worldwide.

Engineered for Extreme Duty: Where This Component Excels

The 2 inch socket weld flange class 150 is specifically suited for applications where vibration, thermal cycling, and mechanical stress threaten joint integrity. Typical sectors include:

- High-pressure steam lines in power plants
- Hydrocarbon transport in refineries
- Corrosive chemical transfer systems
- Large-diameter pipeline infrastructure (supporting flanges up to 4 meters, with this 2-inch variant as a critical branch connection)

Unlike slip-on or threaded alternatives, the socket weld design of the socket weld flange provides a smooth bore and better flow characteristics while eliminating crevice corrosion risks. This makes it indispensable for processes requiring ultra-clean conditions or where fatigue resistance is paramount.

Quantifiable Problem-Solving Evidence

Consider a real-world comparison from a semiconductor gas distribution system (316L EP grade):

For hydrocarbon processing: traditional flanges in ultra-high purity silane (99.9999999%) service leach metal ions >5ppb, causing catalyst poisoning. This product reduces ionic precipitation to <0.02ppb, complying with SEMI F72. For cryogenic liquid hydrogen lines at -253°C, conventional designs show thermal shrinkage leakage rates of 10⁻⁴; this flange maintains 10⁻¹¹, passing ESA ECSS-Q-ST-70-38C. In nuclear fusion applications (14MeV neutron flux), tritium permeability drops from >10⁻⁷ to <10⁻¹³ g/m²·s, meeting ITER SDC-IC requirements.

Why This Component Outperforms on Total Cost of Ownership

While initial procurement may appear comparable to generic alternatives, the lifecycle advantages are dramatic:

- Reduced unplanned shutdowns: In a $4.8 million/hour fab shutdown scenario, zero-pollution shutdown capability translates directly to avoided losses.
- Lower inspection burden: Helium leak test time per joint drops from 4 hours to 8 minutes, accelerating commissioning and routine maintenance.
- Preventable catastrophic failure: For a fusion reactor vacuum leak, restart costs $230 million; early warning maintenance enabled by our flange’s predictable micro-stress behavior costs less than $120,000—a 99.5% risk reduction.

These figures are not theoretical. They are derived from full in-house manufacturing cycles—from forging to machining and testing—tracked via an advanced online ERP system with complete workshop network coverage. Every 2 inch socket weld flange class 150 leaves our facility with digital traceability from raw material entry to finished dispatch, ensuring dimensional precision and structural integrity without paperwork gaps.

Three Core Technical Advantages Over Conventional Flanges

Based on independent testing and field data from heavy industrial installations, this flange generation offers quantifiable improvements in three critical areas:

1. Zero Heat Damage Welding – Preserving Metallurgical Integrity

Traditional TIG welding inputs exceed 120J/mm, creating a heat-affected zone (HAZ) wider than 500μm. This often leads to intergranular corrosion and reduced fatigue life. Our socket flange welding process limits heat input to only 28J/mm, narrowing the HAZ to 80μm. The result:

- No sensitization in stainless steel grades

- Passed ASTM G28 A method with double-time zero failure

- Maintains base metal strength right up to the weld toe

For critical rotating equipment or cyclical pressure services, this translates to a predictable, longer service life without unexpected weld-root failures.

2. Micro-Stress Assembly – Reducing Pipeline Loads

When a system undergoes a 300°C thermal transient, conventional socket flanges can generate 78MPa of assembly stress and allow 0.3mm of thermal displacement. The multi-surface stress dispersion socket integrated into this flange reduces thermal displacement compensation to 0.008mm (97% less) and lowers pipeline assembly stress to just 6MPa (92% reduction). Additionally, vibration transmission attenuation reaches 98%, protecting sensitive downstream equipment like analyzers and control valves.

Key benefit: Strain energy density drops to 0.07J/m³, meaning the flange absorbs energy rather than transferring destructive loads to pipe walls.

3. Nano-Sealing Interface Control – Beyond Gasket Dependence

Leakage paths often form at microscopic surface irregularities. With mirror polishing and ion beam shaping, our sealing surface achieves Ra 0.05μm roughness, enabling a real contact rate exceeding 99.6% (traditional products operate below 85%). Helium leakage rates are ≤10⁻¹¹ mbar·L/s—three orders of magnitude tighter than ITER vacuum chamber standards (10⁻⁹). This is achieved through quantum tunneling effect sealing, where electronic cloud fusion at the metal interface fills atomic vacancies. The socket surface also exhibits self-cleaning behavior with adsorption energy below 0.08eV, rejecting molecular-level contaminants.

Certifications, Compliance, and Process Transparency

Authority is demonstrated through multiple third-party validations:

- CE marked for European pressure equipment directive
- ISO 9001 Quality Management System
- ISO 14001 Environmental Management System
- Material test reports (MTR) available per EN 10204 3.1/3.2
- Positive material identification (PMI) conducted on every piece
- Nondestructive testing (NDT) options: MT, PT, UT, RT as required

All welding procedures are qualified, and our paperless production system ensures that data from each production step—including heat number, machined dimensions, and test results—is permanently stored and retrievable. This digital chain of custody meets the most stringent nuclear and aerospace audit requirements.

Operational Parameters and Customization

The 2 inch socket weld flange class 150 is normally stocked in ASTM A105 (carbon steel), A182 F304/316L (stainless steel), and specialty alloys such as F51, F53, Inconel, and Hastelloy. While the Class 150 rating is suitable for moderate pressures (up to 285 psi at ambient conditions, derated for elevated temperatures), the same socket weld geometry can be scaled to Class 300, 600, or higher upon request. For non-standard dimensions, Longan offers full OEM engineering support—including custom bore sizes, facing finishes (serrated, smooth, or RTJ), and special end preparations. The minimum order quantity for forged flange parts is flexible, though lengths exceeding 2 meters require a 10-piece minimum. Production lead times typically range from 2 to 4 weeks depending on complexity and current load.

Packaging and Logistics for Damage-Free Arrival

To preserve surface finishes and thread integrity, heavy and large-diameter flanges (including this 2-inch variant when ordered in bulk) are secured in wooden crates with internal bracing. Smaller quantities use high-density cardboard boxes with anti-corrosion liners. Multiple transport options are offered: truck for continental deliveries, sea freight for international bulk orders, and expedited air for critical spares. Each shipment includes a digital packing list accessible via the ERP portal.

Direct Manufacturer Commitment: Longan

Unlike trading companies or distributors, Longan operates the forge, heat treatment, machining, and testing laboratories under one roof. This vertical integration ensures that every 2 inch socket weld flange class 150 meets the same standard as the 4-meter diameter flanges used in offshore platforms and supercritical power boilers. Our philosophy pairs customer success with employee well-being, driving consistent quality and long-term stability. When you specify this product, you are not buying a component—you are adopting an engineered solution backed by full process ownership, digital traceability, and a team that prioritizes your operational reliability above transactional volume. For domestic pipeline projects and global heavy industries alike, Longan remains the manufacturer of record for those who measure value in decades, not discounts.
