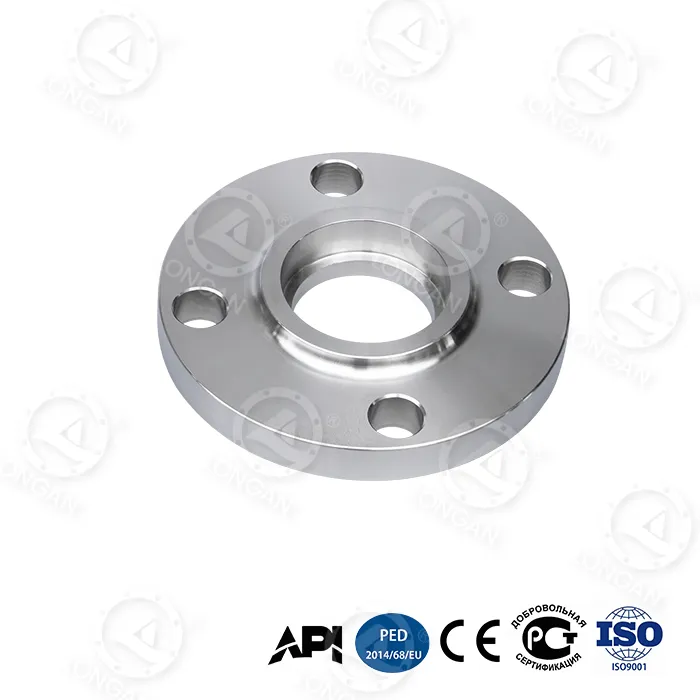

A supplier Longan provides advanced Stainless Steel Socket Weld 304/304L for critical industrial sealing applications. Engineered with precision stress dispersion, ultra-low leakage control, and mirror-polished sealing surfaces, the product delivers reliable operation in cryogenic, vacuum, and ultra-clean pipeline environments.
Stainless Steel Socket Weld 304/304L is engineered for environments where thermal cycling, vibration, contamination control, and leak prevention are critical requirements.
High-pressure fluid transportation
Offshore pipeline assemblies
Corrosion-sensitive refinery systems
Long-distance energy transportation networks
High-purity gas delivery systems
Cleanroom pipeline integration
Particle-sensitive process equipment
Precision vacuum environments
Liquid hydrogen transport pipelines
Fuel loading systems
Extreme low-temperature sealing environments
Vibration-sensitive assemblies
Vacuum chamber sealing systems
Fusion reactor support structures
High-temperature pipeline assemblies
Radiation-resistant sealing applications
Traditional welding processes often generate excessive thermal stress and enlarged heat-affected zones, increasing the possibility of deformation and intergranular corrosion. The Stainless Steel Socket Weld 304/304L minimizes those risks through optimized socket structure engineering.
Performance Comparison
| Parameter | Traditional TIG Welding | Socket Structure Solution |
| Heat Input | ＞120J/mm | 28J/mm |
| Heat-Affected Zone Width | ＞500μm | 80μm |
| Intergranular Corrosion Resistance | Conventional Level | ASTM G28 A Passed |
Lower risk of material distortion
Stable metallurgical structure
Improved sealing consistency
Enhanced service life in corrosive environments
Better dimensional retention after welding
Thermal expansion and vibration transmission are major causes of pipeline leakage and structural fatigue. The optimized multi-surface stress dispersion socket design significantly reduces stress concentration during operation.
Mechanical Performance
| Parameter | Conventional Design | Advanced Socket Structure |
| Thermal Displacement Compensation | 0.3mm | 0.008mm |
| Assembly Stress | 78MPa | 6MPa |
| Vibration Transmission Attenuation | 35% | 98% |
Improved alignment stability
Reduced vibration transfer
Lower maintenance frequency
Better performance under temperature fluctuation
Higher reliability in continuous-duty systems
The strain energy density is reduced to 0.07J/m³ through advanced stress dispersion technology, supporting stable operation under dynamic working conditions.
The sealing interface utilizes mirror polishing combined with ion beam shaping technology to achieve extremely fine surface control.
Surface & Leakage Performance
| Item | Performance |
| Surface Roughness | Ra 0.05μm |
| Helium Leakage Rate | ≤10⁻¹¹ mbar·L/s |
| Real Contact Rate | ＞99.6% |
Superior gas containment capability
Reduced contamination risks
Enhanced vacuum sealing performance
Stable sealing under repeated thermal cycling
Lower leakage probability in high-purity systems
Compared with conventional sealing products, the real contact rate improvement provides more uniform pressure distribution and stronger long-term sealing integrity.
In semiconductor-grade gas pipeline applications using 316L EP systems, advanced sealing performance contributes to cleaner process environments and reduced inspection downtime.
| Indicators | Conventional Solution | Advanced Socket Technology |
| Particle Release | ＞5,000 pieces/m³·h | ＜20 pieces/m³·h |
| Helium Inspection Time | 4h/joint | 8min/joint |
| Wafer Contamination Defects | 0.38/piece | 0.02/piece |
Cleaner gas transmission
Faster maintenance cycles
Reduced contamination risks
Higher system stability
Improved manufacturing continuity
The product incorporates advanced interface engineering to minimize adsorption at the sealing surface.
Key Technical Characteristics
Surface adsorption energy below 0.08eV
Reduced molecular attachment tendency
Enhanced resistance to microscopic contamination accumulation
Improved long-term cleanliness retention
Electronic cloud fusion technology at the metal interface supports atomic vacancy filling behavior, strengthening sealing continuity at the microscopic level.
Stainless Steel Socket Weld 304/304L combines corrosion resistance, fabrication stability, and mechanical durability for demanding industrial pipeline systems.
Excellent corrosion resistance
Good weldability
Stable low-temperature performance
Reliable mechanical strength
Resistance to oxidation and chemical exposure
Long service life in industrial environments
Steam systems
Process gas pipelines
Industrial fluids
Cleanroom gas delivery
Chemical transportation systems
Vacuum process pipelines
The manufacturing process is supported by complete in-house operations including:
Forging
Precision machining
Surface finishing
Dimensional inspection
Leakage testing
Material verification
An advanced ERP production system provides:
Full-process digital traceability
Paperless workshop management
Accurate production data tracking
Real-time quality monitoring
Stable process consistency
Available certifications include:
CE Certification
Quality Management System Certification
Environmental Management System Certification
Each production stage is monitored to maintain dimensional precision, structural integrity, and compliance with applicable industrial requirements.
Heavy large-diameter products packed in reinforced wooden crates
Smaller components packed in durable cartons
Packaging selected according to size, weight, and transportation conditions
Shipping solutions include:
Sea freight
Truck transportation
Customized logistics arrangements for oversized industrial components
Support is available for:
Custom dimensions
Non-standard structures
Special engineering requirements
Large-diameter flange applications
Specialized industrial pipeline configurations
Manufacturing capability extends to flange diameters up to 4 meters for large-scale infrastructure and energy projects.
For industries where sealing integrity directly impacts operational continuity, Stainless Steel Socket Weld 304/304L delivers stable performance through advanced welding control, nano-level sealing technology, and precision stress management. Its combination of ultra-low leakage capability, high-purity compatibility, and structural durability supports critical industrial environments requiring dependable long-term operation.
Longan remains committed to delivering precision-engineered industrial pipeline solutions with strict quality control, advanced manufacturing standards, and reliable technical support for global industrial applications.
