In modern industrial piping applications, selecting the right connection component is essential for maintaining pressure stability and operational safety. Longan specializes in manufacturing reliable high pressure socket flange solutions designed for demanding environments where strength, precision, and leak prevention are critical. As an experienced flange supplier, Longan provides engineered products that meet the needs of chemical processing, oil and gas, power generation, and heavy industrial projects.
A high pressure socket flange is a specialized pipe connection component designed to provide strong mechanical performance and excellent sealing ability under high-pressure conditions. Compared with conventional flange designs, socket weld flanges offer improved alignment, reduced leakage risks, and enhanced durability. This article explains the structure, advantages, materials, applications, selection factors, and maintenance considerations of high pressure socket flange products to help engineers and purchasing professionals make informed decisions.

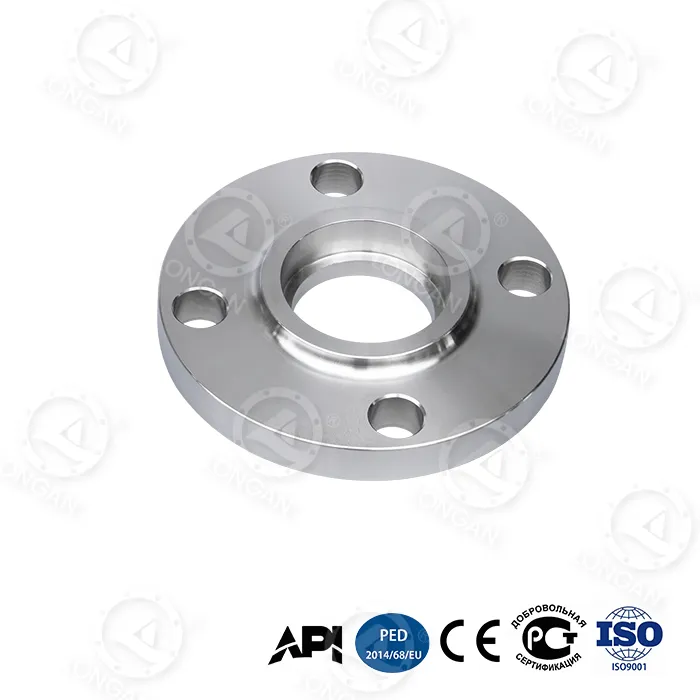

A high pressure socket flange is a type of forged flange that connects pipes through a socket welding structure. The pipe is inserted into the socket area of the flange and then welded externally to create a secure and pressure-resistant joint. This design provides accurate positioning and strong connection performance, making it suitable for small-diameter piping systems operating under high pressure.
Unlike standard slip-on flanges, socket flanges offer better fatigue resistance because the pipe does not need to pass completely through the flange body. The internal socket design helps maintain proper pipe alignment while reducing installation difficulty.
High pressure socket flange products are commonly manufactured according to international standards such as ASME, ANSI, DIN, and JIS specifications. They are available in different pressure classes, including Class 150, 300, 600, 900, 1500, and higher ratings depending on project requirements.
The design of a high pressure socket flange consists of several important components that work together to ensure reliable sealing and mechanical strength.
| Component | Function | Performance Benefit |
|---|---|---|
| Socket Area | Provides space for pipe insertion | Improves alignment accuracy during installation |
| Flange Face | Creates sealing surface with gasket connection | Reduces leakage possibility |
| Weld Joint | Secures pipe and flange connection | Enhances pressure resistance |
| Bolt Holes | Allow flange fastening with bolts | Ensures stable assembly |
During operation, the flange transfers internal pressure loads through the forged metal structure while maintaining a stable sealing connection. Proper welding procedures and dimensional accuracy are important factors affecting long-term performance.
High pressure socket flange solutions are widely selected because they provide several advantages for industrial piping systems.
For industries requiring continuous operation and strict safety standards, choosing a high-quality flange solution can significantly reduce maintenance frequency and improve overall system efficiency.
The material selection of a high pressure socket flange directly affects corrosion resistance, temperature tolerance, and service life. Common materials include carbon steel, stainless steel, alloy steel, and special alloys.
| Material | Main Characteristics | Typical Applications |
|---|---|---|
| Carbon Steel | High strength and cost efficiency | General industrial piping systems |
| Stainless Steel | Excellent corrosion resistance | Chemical and food processing industries |
| Alloy Steel | High temperature and pressure resistance | Power plants and oil industries |
| Special Alloy | Superior performance in extreme environments | Marine and chemical applications |
The manufacturing process usually includes forging, heat treatment, machining, surface finishing, dimensional inspection, and pressure testing. Professional manufacturers apply strict quality control procedures to ensure every flange meets industrial standards.
Due to its strong sealing ability and pressure resistance, high pressure socket flange products are widely used across multiple industries.
Choosing the correct flange requires careful consideration of operating conditions, pipeline specifications, and project requirements. Important factors include:
Purchasers should work with experienced manufacturers who can provide accurate technical support, customized solutions, and quality assurance for specific industrial applications.
| Flange Type | Main Feature | Suitable Application |
|---|---|---|
| Socket Weld Flange | Strong connection with internal socket design | Small diameter high-pressure systems |
| Slip-On Flange | Easy installation and economical design | Low to medium pressure pipelines |
| Weld Neck Flange | Excellent stress distribution | High-pressure and high-temperature systems |
| Blind Flange | Used for pipeline closure | Maintenance and pressure testing |
Although different flange types have their own advantages, high pressure socket flange designs remain a preferred choice when precision installation and reliable pressure performance are required.
The main advantage is its strong and reliable connection performance. The socket welding structure provides accurate alignment, excellent sealing, and improved resistance to pressure and vibration.
They are commonly used in oil and gas, chemical processing, petrochemical, power generation, and industrial pipeline systems where safety and durability are important.
Regular inspection of weld areas, bolts, sealing surfaces, and corrosion conditions is recommended. Proper installation and periodic maintenance can significantly extend service life.
Yes. Professional manufacturers can customize dimensions, materials, pressure ratings, and surface treatments according to customer drawings and project requirements.
A high pressure socket flange plays an important role in creating safe, durable, and efficient industrial piping connections. With advantages including high pressure resistance, reliable sealing performance, and flexible application possibilities, it has become an essential component for demanding engineering projects. Selecting a trusted manufacturer with advanced production capabilities and strict quality control helps ensure long-term system reliability.
If you are searching for a dependable high pressure socket flange supplier with professional manufacturing experience and customized solutions, Longan can provide high-quality flange products designed for various industrial applications. Please contact us today to discuss your project requirements and receive professional support for your piping connection needs.
