In industrial piping systems, selecting the right flange can significantly affect installation efficiency, maintenance costs, and long-term reliability. Among the many flange types available today, the flat slip on flange has become one of the most widely used solutions across industries such as oil and gas, chemical processing, water treatment, power generation, and construction. Its simple design, easy alignment, and economical pricing make it a preferred choice for engineers and project managers worldwide.

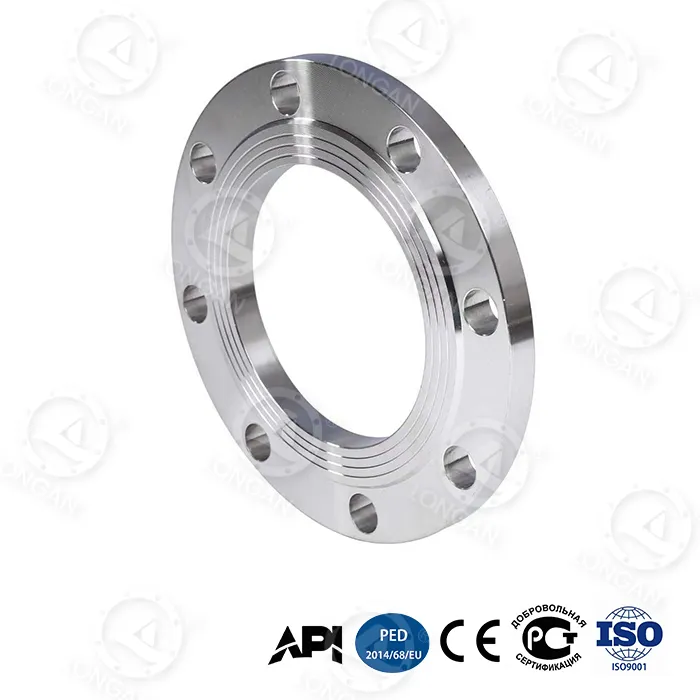

A flat slip on flange is a type of pipe flange designed with a slightly larger bore than the pipe's outside diameter. This design allows the pipe to slide into the flange before welding. Once positioned correctly, fillet welds are applied to both the inside and outside of the flange to create a secure connection.
Unlike weld neck flanges, which require a more complex butt weld connection, a flat slip on flange offers a simpler installation process. This characteristic makes it particularly attractive for low-pressure and moderate-pressure applications where cost efficiency and ease of assembly are priorities.
The design provides adequate strength while minimizing fabrication time, making it one of the most economical flange options available in industrial piping systems.
The operating principle of a flat slip on flange is straightforward. The pipe slides through the flange bore until it reaches the desired position. Welders then perform fillet welding on both sides of the flange to secure the connection.
The dual-weld arrangement provides several advantages:
Because the pipe can move within the flange before welding, installers gain greater flexibility when aligning piping systems, especially in large-scale industrial projects.
The popularity of the flat slip on flange is driven by numerous practical advantages.
Since the pipe simply slips into the flange, alignment becomes much easier compared with weld neck flanges. This feature significantly reduces labor requirements.
Flat slip on flanges generally require less machining and welding preparation, lowering both manufacturing and installation costs.
They can be used with a wide range of piping materials and system configurations.
For low and medium-pressure applications, these flanges provide dependable sealing and structural integrity.
Simplified welding procedures help accelerate project schedules.
| Advantage | Benefit |
|---|---|
| Easy Alignment | Faster installation process |
| Lower Material Cost | Reduced project budget |
| Simple Welding | Less labor required |
| Flexible Positioning | Improved assembly accuracy |
| Wide Availability | Easy procurement worldwide |
The flat slip on flange serves a broad range of industries and applications.
Municipal and industrial water treatment plants frequently use flat slip on flanges because of their cost-effectiveness and corrosion-resistant material options.
Many chemical transfer systems rely on slip on flanges for moderate-pressure pipelines.
While high-pressure systems often require weld neck flanges, many auxiliary pipelines utilize flat slip on flanges successfully.
Cooling water systems and utility pipelines commonly incorporate this flange type.
Large commercial and industrial HVAC installations benefit from their straightforward installation process.
Material selection plays a critical role in flange performance and longevity.
| Material | Main Features | Common Applications |
|---|---|---|
| Carbon Steel | Economical and strong | General industrial piping |
| Stainless Steel 304 | Excellent corrosion resistance | Food and water systems |
| Stainless Steel 316 | Superior chemical resistance | Chemical processing |
| Alloy Steel | High-temperature strength | Power generation |
| Duplex Stainless Steel | High strength and corrosion resistance | Marine environments |
Choosing the appropriate material depends on operating pressure, temperature, fluid characteristics, and environmental conditions.
| Flange Type | Installation Ease | Cost | Pressure Capability |
|---|---|---|---|
| Flat Slip On Flange | Excellent | Low | Medium |
| Weld Neck Flange | Moderate | Higher | High |
| Socket Weld Flange | Good | Medium | High |
| Blind Flange | Easy | Medium | High |
| Threaded Flange | Easy | Medium | Low to Medium |
For many industrial projects, the flat slip on flange offers the best balance between cost and performance.
Proper installation ensures reliable performance throughout the system's service life.
Following industry standards helps maximize safety and system reliability.
Several factors should be considered before purchasing a flat slip on flange:
Selecting the correct flange ensures optimal performance while minimizing long-term maintenance expenses.
Longan has established a strong reputation as a trusted manufacturer and supplier of high-quality flange products. The company focuses on precision manufacturing, strict quality control, and compliance with international standards.
When sourcing a flat slip on flange from Longan, customers benefit from:
Whether your project requires carbon steel, stainless steel, or specialized alloy materials, Longan provides solutions tailored to your operational requirements.
The biggest advantage is its combination of low cost, easy installation, and reliable performance in low to medium-pressure systems.
While suitable for many industrial systems, extremely high-pressure applications often require weld neck flanges.
Water treatment, chemical processing, oil and gas, power generation, and HVAC industries commonly utilize them.
Carbon steel, stainless steel, alloy steel, and duplex stainless steel are among the most popular choices.
Their simple design reduces machining complexity, welding preparation, and installation time, leading to lower overall project costs.
The flat slip on flange remains one of the most practical and cost-effective flange solutions available for modern piping systems. Its straightforward installation, flexible alignment capabilities, broad material options, and dependable performance make it an excellent choice across numerous industries. By carefully selecting the appropriate flange specifications and working with an experienced manufacturer, businesses can achieve long-lasting reliability while optimizing project budgets.
Looking for premium-quality flat slip on flange solutions tailored to your project requirements? Contact us today to discuss your specifications, request a quotation, and discover how Longan can help deliver durable, high-performance flange products that meet international standards while supporting your operational success.
-
